Datasheets
STEVAL-SMACH15V1 Data Brief.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $48.75 | $48.75 |

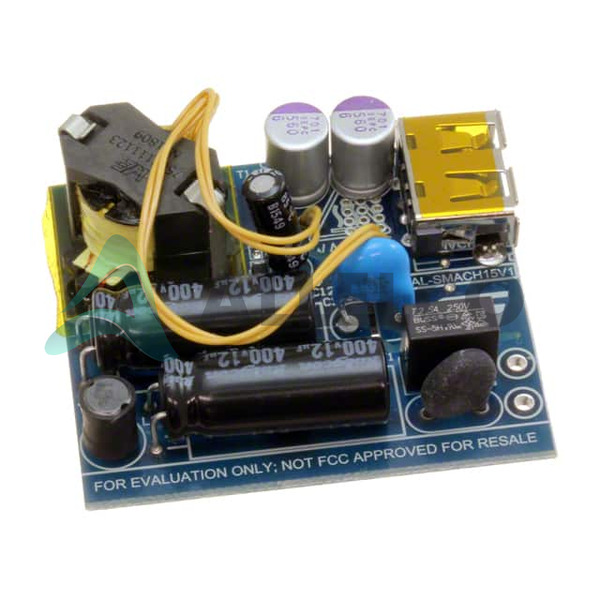

STEVAL-SMACH15V1 Tech -specificaties
STMicroelectronics - STEVAL-SMACH15V1 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als STMicroelectronics - STEVAL-SMACH15V1
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | STMicroelectronics | |
| Voltage - Output | 5V | |
| Voltage - Input | 90 ~ 265 VAC | |
| Gebruikt IC / Part | STCH03 | |
| geleverd Inhoud | Board(s) | |
| Serie | - | |
| regulator Topologie | Flyback |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Pakket | Bulk | |
| Uitgangen en Type | 1, Non-Isolated | |
| Belangrijkste doel | AC/DC, Primary and Secondary Side | |
| Frequentie - Schakelen | 167kHz | |
| Current - Output | 3A | |
| Board Type | Fully Populated | |
| Base Productnummer | STEVAL |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | Niet toepasbaar |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9510 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als STMicroelectronics STEVAL-SMACH15V1.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | STEVAL-SMACH15V1 | STEVAL-SPDC01V2 | STEVAL-SPDC01V1 | STEVAL-PSQ001V1 |
| Fabrikant | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Gebruikt IC / Part | STCH03 | SPDC12L00010 | SPDC12L00010 | PM6680A |
| Base Productnummer | STEVAL | - | - | - |
| Belangrijkste doel | AC/DC, Primary and Secondary Side | DC/DC, Step Down | DC/DC, Step Down | DC/DC, Step Down with LDO |
| Serie | - | - | - | - |
| Pakket | Bulk | Box | Box | Bulk |
| Uitgangen en Type | 1, Non-Isolated | 1, Non-Isolated | 1, Non-Isolated | 6, Non-Isolated |
| Voltage - Output | 5V | 0.6V ~ 5V | 0.6V ~ 5V | - |
| Board Type | Fully Populated | Fully Populated | Fully Populated | Fully Populated |
| Current - Output | 3A | 10A | 10A | 4A, 2A, 800mA, 400mA, 400mA, 150mA |
| geleverd Inhoud | Board(s) | Board(s) | Board(s) | Board(s) |
| Frequentie - Schakelen | 167kHz | Adjustable | - | 200kHz, 300kHz |
| Voltage - Input | 90 ~ 265 VAC | 1.8V ~ 14V | 1.8V ~ 14V | 5V ~ 36V |
| regulator Topologie | Flyback | Buck | Buck | Buck |
Download STEVAL-SMACH15V1 PDF -datasheets en STMicroelectronics -documentatie voor STEVAL-SMACH15V1 - STMicroelectronics.
