Datasheets
1770597.pdfPCN -ontwerp/specificatie
Mechanical 03/Mar/2014.pdfPcn veroudering/ eol
PLH 16/ 10/Jun/2021.pdf1770597 Tech -specificaties

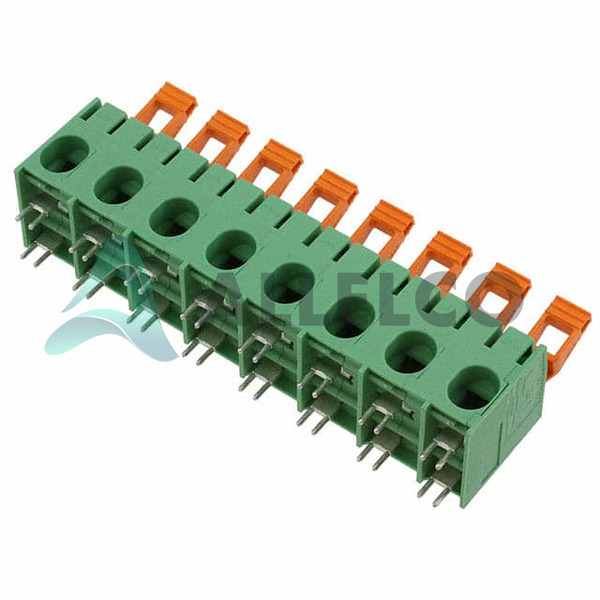

Phoenix Contact - 1770597 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Phoenix Contact - 1770597
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Phoenix Contact | |
| Wire Beëindiging | Screwless - Spring Cage, Tension Clamp | |
| Wire Gauge | 4-18 AWG | |
| Spanning | 600 V | |
| Moment - Schroef | - | |
| Serie | COMBICON PLH | |
| Schroefdraad | - | |
| Screw Material - Plating | - | |
| Posities Per Level | 8 | |
| toonhoogte | 0.591" (15.00mm) | |
| Pakket | Bulk |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Temperatuur | - | |
| Aantal Levels | 1 | |
| montage Type | Through Hole | |
| mating Orientation | Horizontal with Board | |
| Materiaal behuizing | Polyamide (PA), Nylon | |
| Kenmerken | Interlocking (Side), Lever Actuated | |
| Actueel | 66 A | |
| Contact Material - Plating | - | |
| Kleur | Green | |
| Clamp Material - Plating | - |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | RoHS-conformiteit |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Phoenix Contact 1770597.
| Productkenmerk | ![]() |
![]() |
||
|---|---|---|---|---|
| Onderdeel nummer | 1770571 | 1770568 | 1770584 | 1770555 |
| Fabrikant | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| Serie | - | - | - | - |
| mating Orientation | - | - | - | - |
| Schroefdraad | - | - | - | - |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
| Actueel | - | - | - | - |
| Wire Beëindiging | - | - | - | - |
| Kenmerken | - | - | - | Simultaneous Sampling |
| Materiaal behuizing | - | - | - | - |
| Kleur | - | - | - | - |
| Clamp Material - Plating | - | - | - | - |
| Wire Gauge | - | - | - | - |
| Moment - Schroef | - | - | - | - |
| Spanning | - | - | - | - |
| toonhoogte | - | - | - | - |
| Pakket | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Posities Per Level | - | - | - | - |
| Temperatuur | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Contact Material - Plating | - | - | - | - |
| Aantal Levels | - | - | - | - |
| Screw Material - Plating | - | - | - | - |
Download 1770597 PDF -datasheets en Phoenix Contact -documentatie voor 1770597 - Phoenix Contact.
