Datasheets
TPS563200EVM-652 User Guide.pdfHTML -datasheet
TPS562200,TPS563200 Datasheet.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $58.80 | $58.80 |

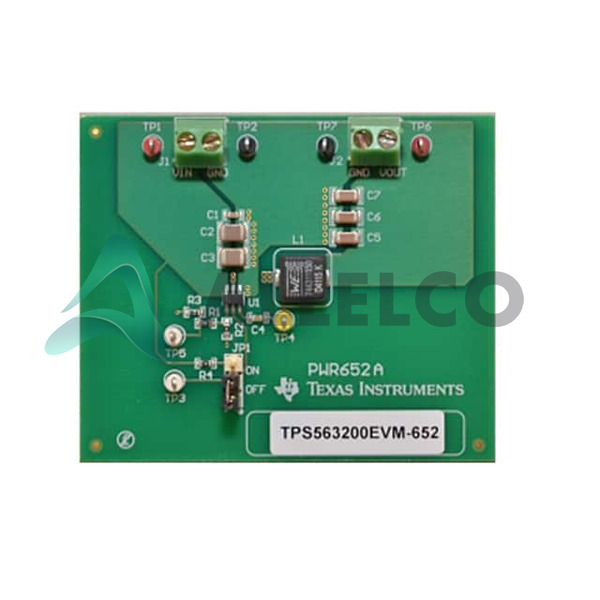

TPS563200EVM-652 Tech -specificaties
Texas Instruments - TPS563200EVM-652 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Texas Instruments - TPS563200EVM-652
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Texas Instruments | |
| Voltage - Output | 1.05V | |
| Voltage - Input | 4.5V ~ 17V | |
| Gebruikt IC / Part | TPS563200 | |
| geleverd Inhoud | Board(s) | |
| Serie | D-CAP2™, Eco-Mode™, SWIFT™ | |
| regulator Topologie | Buck |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Pakket | Box | |
| Uitgangen en Type | 1, Non-Isolated | |
| Belangrijkste doel | DC/DC, Step Down | |
| Frequentie - Schakelen | 650kHz | |
| Current - Output | 3A | |
| Board Type | Fully Populated | |
| Base Productnummer | TPS563200 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | Niet toepasbaar |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8473.30.1180 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Texas Instruments TPS563200EVM-652.
| Productkenmerk | ![]() |
|||
|---|---|---|---|---|
| Onderdeel nummer | TPS563200EVM-652 | TPS56302EVM-163 | TPS563201EVM-715 | TPS563202EVM |
| Fabrikant | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Base Productnummer | TPS563200 | TPS563 | TPS563201 | TPS563202 |
| Serie | D-CAP2™, Eco-Mode™, SWIFT™ | - | D-CAP2™, SWIFT™ | - |
| Current - Output | 3A | 4A, 500mA | 3A | 3A |
| Voltage - Output | 1.05V | 1.8V, 3.3V | 1.05V | 1.05V |
| geleverd Inhoud | Board(s) | Board(s) | Board(s) | Board(s) |
| Belangrijkste doel | DC/DC, Step Down | DC/DC, Step Down with LDO | DC/DC, Step Down | DC/DC, Step Down |
| Board Type | Fully Populated | Fully Populated | Fully Populated | Fully Populated |
| Pakket | Box | Bulk | Bulk | Box |
| Frequentie - Schakelen | 650kHz | 300kHz | 580kHz | 600kHz |
| regulator Topologie | Buck | Buck | Buck | Buck |
| Gebruikt IC / Part | TPS563200 | TPS56302 | TPS563201 | TPS563202 |
| Voltage - Input | 4.5V ~ 17V | 2.8V ~ 5.5V | 4.5V ~ 17V | 4.3V ~ 17V |
| Uitgangen en Type | 1, Non-Isolated | 2, Non-Isolated | 1, Non-Isolated | 1, Non-Isolated |
Download TPS563200EVM-652 PDF -datasheets en Texas Instruments -documentatie voor TPS563200EVM-652 - Texas Instruments.
