Datasheets
TPS560430-Q1 EVM User Guide.pdfHTML -datasheet
TPS560430-Q1 EVM User Guide.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $58.80 | $58.80 |

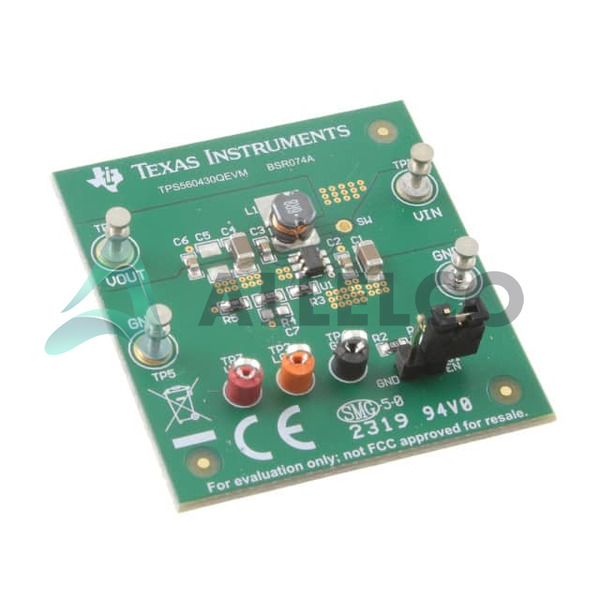

TPS560430QEVM Tech -specificaties
Texas Instruments - TPS560430QEVM Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Texas Instruments - TPS560430QEVM
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Texas Instruments | |
| Voltage - Output | 5V | |
| Voltage - Input | 7.5V ~ 36V | |
| Gebruikt IC / Part | TPS560430-Q1 | |
| geleverd Inhoud | Board(s) | |
| Serie | - | |
| regulator Topologie | Buck |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Pakket | Box | |
| Uitgangen en Type | 1, Non-Isolated | |
| Belangrijkste doel | DC/DC, Step Down | |
| Frequentie - Schakelen | 2.1MHz | |
| Current - Output | 600mA | |
| Board Type | Fully Populated | |
| Base Productnummer | TPS560430 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | Niet toepasbaar |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8473.30.1180 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Texas Instruments TPS560430QEVM.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | TPS560430QEVM | TPS560200EVM-537 | TPS560430XFEVM | TPS5602IDBTR |
| Fabrikant | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Gebruikt IC / Part | TPS560430-Q1 | TPS560200 | TPS560430 | - |
| geleverd Inhoud | Board(s) | Board(s) | Board(s) | - |
| Base Productnummer | TPS560430 | TPS560200 | TPS560430 | TPS5602 |
| Serie | - | SWIFT™, D-CAP2™, Eco-Mode™ | - | - |
| Board Type | Fully Populated | Fully Populated | Fully Populated | - |
| regulator Topologie | Buck | Buck | Buck | - |
| Pakket | Box | Box | Bulk | Tape & Reel (TR) |
| Current - Output | 600mA | 500mA | 600mA | - |
| Uitgangen en Type | 1, Non-Isolated | 1, Non-Isolated | 1, Non-Isolated | - |
| Frequentie - Schakelen | 2.1MHz | 600kHz | 1.1MHz | - |
| Belangrijkste doel | DC/DC, Step Down | DC/DC, Step Down | DC/DC, Step Down | - |
| Voltage - Output | 5V | 1.05V | 5V | Adj down to 1.2V |
| Voltage - Input | 7.5V ~ 36V | 4.5V ~ 17V | 4V ~ 36V | 4.5V ~ 25V |
Download TPS560430QEVM PDF -datasheets en Texas Instruments -documentatie voor TPS560430QEVM - Texas Instruments.
TPS5602IDBTG4Luminary Micro / Texas InstrumentsIC SYNC BUCK CTRLR DUAL 30-TSSOP
TPS560430Texas Instruments
TPS560430XDBVTTexas Instruments
TPS560430XFTexas Instruments
TPS560200DBVTTexas InstrumentsUw e -mailadres wordt niet gepubliceerd.
