Datasheets
TPS54394EVM-057 User Guide.pdfHTML -datasheet
TPS54394.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $58.80 | $58.80 |

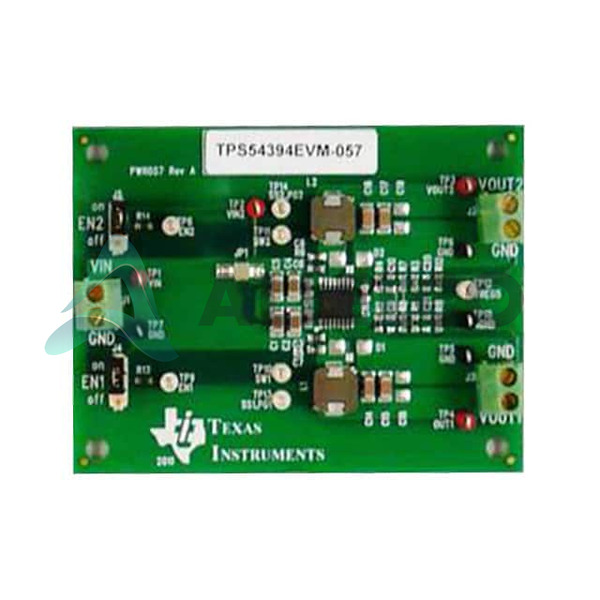

TPS54394EVM-057 Tech -specificaties
Texas Instruments - TPS54394EVM-057 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Texas Instruments - TPS54394EVM-057
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Texas Instruments | |
| Voltage - Output | 1.5V, 3.3V | |
| Voltage - Input | 5V ~ 18V | |
| Gebruikt IC / Part | TPS54394 | |
| geleverd Inhoud | Board(s) | |
| Serie | SWIFT™, D-CAP2™, Eco-Mode™ | |
| regulator Topologie | Buck |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Pakket | Box | |
| Uitgangen en Type | 2, Non-Isolated | |
| Belangrijkste doel | DC/DC, Step Down | |
| Frequentie - Schakelen | 700kHz | |
| Current - Output | 3A, 3A | |
| Board Type | Fully Populated | |
| Base Productnummer | TPS54394 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | Niet toepasbaar |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8473.30.1180 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Texas Instruments TPS54394EVM-057.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | TPS54394EVM-057 | TPS54388EVM | TPS54395EVM-057 | TPS54388QRTERQ1 |
| Fabrikant | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Voltage - Output | 1.5V, 3.3V | 1.2V | 1.5V, 3.3V | - |
| Voltage - Input | 5V ~ 18V | 3V ~ 6V | 5V ~ 18V | - |
| Belangrijkste doel | DC/DC, Step Down | DC/DC, Step Down | DC/DC, Step Down | - |
| regulator Topologie | Buck | Buck | Buck | - |
| Frequentie - Schakelen | 700kHz | 2MHz | 700kHz | 200kHz ~ 2MHz |
| Base Productnummer | TPS54394 | TPS54388 | TPS54395 | TPS543 |
| Pakket | Box | Box | Box | Tape & Reel (TR) |
| Board Type | Fully Populated | Fully Populated | Fully Populated | - |
| Serie | SWIFT™, D-CAP2™, Eco-Mode™ | SWIFT™ | SWIFT™, D-CAP2™, Eco-Mode™ | Automotive, AEC-Q100, SWIFT™ |
| Current - Output | 3A, 3A | 3A | 3A, 3A | 3A |
| Uitgangen en Type | 2, Non-Isolated | 1, Non-Isolated | 2, Non-Isolated | - |
| geleverd Inhoud | Board(s) | Board(s) | Board(s) | - |
| Gebruikt IC / Part | TPS54394 | TPS54388-Q1 | TPS54395 | - |
Download TPS54394EVM-057 PDF -datasheets en Texas Instruments -documentatie voor TPS54394EVM-057 - Texas Instruments.
