Datasheets
TPS53015EVM-126 User Guide.pdfHTML -datasheet
TPS53015.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $58.80 | $58.80 |

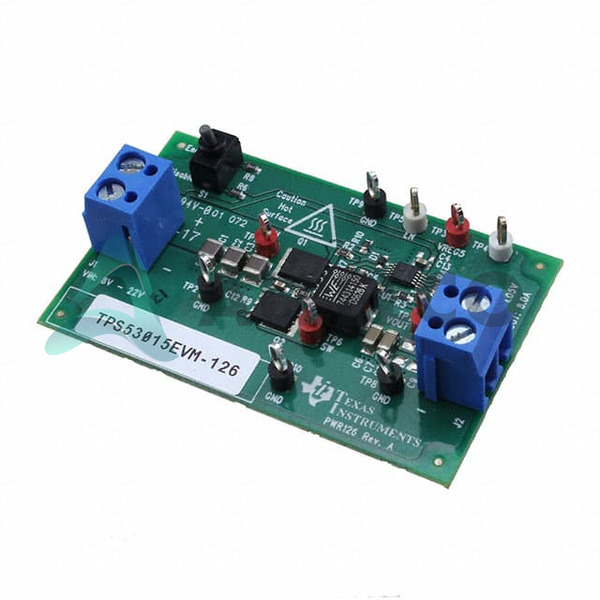

TPS53015EVM-126 Tech -specificaties
Texas Instruments - TPS53015EVM-126 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Texas Instruments - TPS53015EVM-126
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Texas Instruments | |
| Voltage - Output | 1.05V | |
| Voltage - Input | 8V ~ 22V | |
| Gebruikt IC / Part | TPS53015 | |
| geleverd Inhoud | Board(s) | |
| Serie | D-CAP2™, Eco-Mode™ | |
| regulator Topologie | Buck |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Pakket | Box | |
| Uitgangen en Type | 1, Non-Isolated | |
| Belangrijkste doel | DC/DC, Step Down | |
| Frequentie - Schakelen | 500kHz | |
| Current - Output | 8A | |
| Board Type | Fully Populated | |
| Base Productnummer | TPS53015 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | Niet toepasbaar |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8473.30.1180 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Texas Instruments TPS53015EVM-126.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | TPS53015EVM-126 | TPS53119EVM-690 | TPS53014EVM-126 | TPS53114EVM-541 |
| Fabrikant | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| regulator Topologie | Buck | Buck | Buck | Buck |
| Voltage - Output | 1.05V | 1.1V | 1.05V | 1.05V |
| Base Productnummer | TPS53015 | TPS53119 | TPS53014 | TPS53114 |
| Current - Output | 8A | 25A | 8A | 20A |
| Voltage - Input | 8V ~ 22V | 8V ~ 14V | 8V ~ 22V | 8V ~ 14V |
| Frequentie - Schakelen | 500kHz | 300kHz | 500kHz | 350kHz |
| Board Type | Fully Populated | Fully Populated | Fully Populated | Fully Populated |
| Uitgangen en Type | 1, Non-Isolated | 1, Non-Isolated | 1, Non-Isolated | 1, Non-Isolated |
| Belangrijkste doel | DC/DC, Step Down | DC/DC, Step Down | DC/DC, Step Down | DC/DC, Step Down |
| geleverd Inhoud | Board(s) | Board(s) | Board(s) | Board(s) |
| Gebruikt IC / Part | TPS53015 | TPS53119 | TPS53014 | TPS53114 |
| Serie | D-CAP2™, Eco-Mode™ | - | D-CAP2™, Eco-Mode™ | D-CAP™ |
| Pakket | Box | Bulk | Box | Box |
