Datasheets
LM5155EVM-BST User Guide.pdfHTML -datasheet
LM5155.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $70.80 | $70.80 |

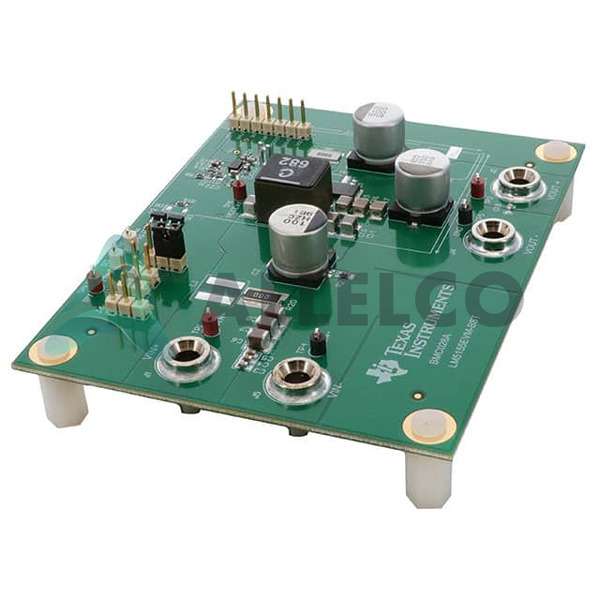

LM5155EVM-BST Tech -specificaties
Texas Instruments - LM5155EVM-BST Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Texas Instruments - LM5155EVM-BST
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Texas Instruments | |
| Voltage - Output | 24V | |
| Voltage - Input | 6V ~ 18V | |
| Gebruikt IC / Part | LM5155 | |
| geleverd Inhoud | Board(s) | |
| Serie | - | |
| regulator Topologie | Boost |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Pakket | Box | |
| Uitgangen en Type | 1, Non-Isolated | |
| Belangrijkste doel | DC/DC, Step Up | |
| Frequentie - Schakelen | 440kHz | |
| Current - Output | 2A | |
| Board Type | Fully Populated | |
| Base Productnummer | LM5155 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | ROHS3 -compatibel |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Texas Instruments LM5155EVM-BST.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | LM5155EVM-BST | LM5155EVM-SEPIC | LM5155EVM-FLY | LM5152EVM-BST |
| Fabrikant | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Pakket | Box | Box | Box | Box |
| geleverd Inhoud | Board(s) | Board(s) | Board(s) | Board(s) |
| Voltage - Output | 24V | 12V | 5V | 8.5V |
| Board Type | Fully Populated | Fully Populated | Fully Populated | Fully Populated |
| Serie | - | - | - | - |
| Gebruikt IC / Part | LM5155 | LM5155-Q1 | LM5155 | LM5152-Q1 |
| regulator Topologie | Boost | Boost, SEPIC | Flyback | Boost |
| Base Productnummer | LM5155 | LM5155 | LM5155 | - |
| Uitgangen en Type | 1, Non-Isolated | 1, Non-Isolated | 1, Isolated | 1, Non-Isolated |
| Frequentie - Schakelen | 440kHz | 2.2MHz | 250kHz | 440kHz |
| Current - Output | 2A | 2A | 4A | 6A |
| Voltage - Input | 6V ~ 18V | 6V ~ 18V | 18V ~ 36V | 2.5V ~ 36V |
| Belangrijkste doel | DC/DC, Step Up | DC/DC, Step Up | DC/DC, Step Down | DC/DC, Step Up |
Download LM5155EVM-BST PDF -datasheets en Texas Instruments -documentatie voor LM5155EVM-BST - Texas Instruments.
