| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $13.419 | $13.42 |

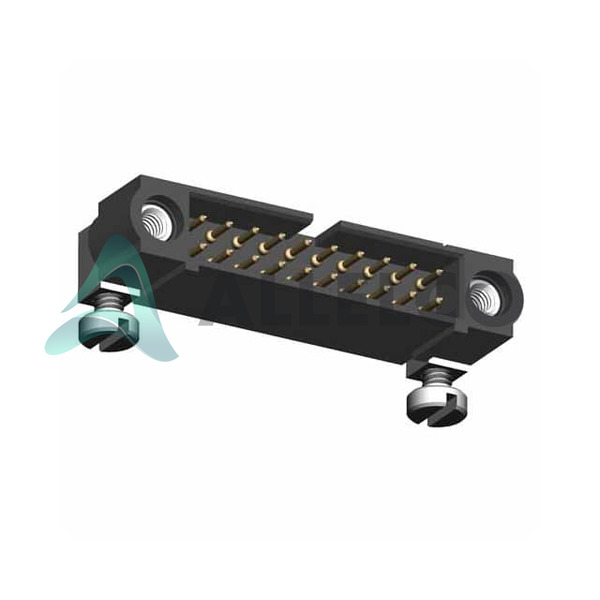

M80-5C10605M5 Tech -specificaties
Harwin Inc. - M80-5C10605M5 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Harwin Inc. - M80-5C10605M5
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Harwin | |
| Nominale spanning | 800V | |
| Beëindiging | Solder | |
| Stijl | Board to Board or Cable | |
| Shrouding | Shrouded - 4 Wall | |
| Serie | Datamate J-Tek | |
| Rijafstand - Paring | 0.079" (2.00mm) | |
| Pitch - Paring | 0.079" (2.00mm) | |
| Pakket | Tube | |
| Totale contactlengte | - | |
| Temperatuur | -55°C ~ 125°C | |
| Aantal rijen | 2 | |
| Aantal posities Loaded | All | |
| Aantal posities | 6 | |
| montage Type | Surface Mount, Right Angle | |
| Materiaal Ontvlambaarheidsklasse | UL94 V-0 | |
| Gekoppelde Stacking Heights | - | |
| Differentiële datatransmissie | Polyphenylene Sulfide (PPS), Glass Filled |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Isolatiehoogte | 0.219" (5.56mm) | |
| Isolatie Kleur | Black | |
| Ingress Protection | - | |
| Kenmerken | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware | |
| bevestegingswijze | Threaded | |
| Huidige beoordeling (versterkers) | 2.2A per Contact | |
| contact type | Male Pin | |
| Contact Vorm | Circular | |
| Contact Material | Brass | |
| Contact Lengte - Post | - | |
| Contact Lengte - Paring | - | |
| Contact Voltooi Dikte - Post | - | |
| Contact Voltooi Dikte - Paring | 10.0µin (0.25µm) | |
| Contact Afwerken - Post | - | |
| Contact Afronden - Paring | Gold | |
| connector Type | Header | |
| Base Productnummer | M80-5C1 | |
| toepassingen | - |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Harwin Inc. M80-5C10605M5.
| Productkenmerk | ![]() |
|||
|---|---|---|---|---|
| Onderdeel nummer | M80-5C10605M5 | M80-5C11005M5 | M80-5C110M4 | M80-5832005 |
| Fabrikant | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| Gekoppelde Stacking Heights | - | - | - | - |
| Shrouding | Shrouded - 4 Wall | - | - | - |
| Materiaal Ontvlambaarheidsklasse | UL94 V-0 | - | - | - |
| Contact Lengte - Paring | - | - | - | - |
| Base Productnummer | M80-5C1 | - | - | M80-583 |
| Contact Afronden - Paring | Gold | - | - | - |
| Aantal rijen | 2 | 2 | 2 | 2 |
| Stijl | Board to Board or Cable | - | - | - |
| Isolatie Kleur | Black | - | - | - |
| bevestegingswijze | Threaded | Screw Lock | Threaded | Screw Lock |
| Isolatiehoogte | 0.219" (5.56mm) | - | - | - |
| Nominale spanning | 800V | - | - | - |
| Contact Afwerken - Post | - | - | - | - |
| Totale contactlengte | - | - | - | - |
| Ingress Protection | - | - | - | - |
| toepassingen | - | - | - | - |
| Differentiële datatransmissie | Polyphenylene Sulfide (PPS), Glass Filled | - | - | - |
| Huidige beoordeling (versterkers) | 2.2A per Contact | - | - | - |
| Contact Material | Brass | - | - | - |
| Temperatuur | -55°C ~ 125°C | - | - | - |
| Serie | Datamate J-Tek | Datamate J-Tek | Datamate J-Tek | Datamate J-Tek |
| Aantal posities Loaded | All | - | - | - |
| Rijafstand - Paring | 0.079" (2.00mm) | - | - | - |
| Contact Voltooi Dikte - Paring | 10.0µin (0.25µm) | - | - | - |
| montage Type | Surface Mount, Right Angle | Panel Mount | Panel Mount, Right Angle | Free Hanging (In-Line) |
| contact type | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Paring | 0.079" (2.00mm) | - | - | - |
| connector Type | Header | Header | Header | Header |
| Contact Vorm | Circular | - | - | - |
| Aantal posities | 6 | 10 | 10 | 20 |
| Contact Lengte - Post | - | - | - | - |
| Contact Voltooi Dikte - Post | - | - | - | - |
| Kenmerken | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware | Jackscrews | Jackscrews, Polarizing Key | Jackscrews, Polarizing Key |
| Pakket | Tube | Bulk | Bulk | Bulk |
| Beëindiging | Solder | - | - | - |
