Datasheets
26-61-5060.pdfHTML -datasheet
KK 41792 Series Drawing.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $1.573 | $1.57 |
26-61-5060 Tech -specificaties
Affinity Medical Technologies - a Molex company - 26-61-5060 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Affinity Medical Technologies - a Molex company - 26-61-5060
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | Molex | |
| Nominale spanning | - | |
| Beëindiging | Solder | |
| Stijl | Board to Board or Cable | |
| Shrouding | Shrouded - 1 Wall | |
| Serie | KK 41792 | |
| Rijafstand - Paring | - | |
| Pitch - Paring | 0.156" (3.96mm) | |
| Packaging | Bulk | |
| Totale contactlengte | - | |
| Andere namen | 0026615060 26-61-5060-P 26615060 41792-0023 WM5239 |
|
| Temperatuur | - | |
| Aantal rijen | 1 | |
| Aantal posities Loaded | All | |
| Aantal posities | 6 | |
| montage Type | Through Hole, Right Angle | |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) | |
| Materiaal Ontvlambaarheidsklasse | UL94 V-0 | |
| Gekoppelde Stacking Heights | - | |
| Fabrikant Standaard Levertijd | 9 Weeks |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Loodvrije status / RoHS-status | Lead free / RoHS Compliant | |
| Differentiële datatransmissie | Polyester, Glass Filled | |
| Isolatiehoogte | 0.394" (10.00mm) | |
| Isolatie Kleur | Natural | |
| Ingress Protection | - | |
| Kenmerken | - | |
| bevestegingswijze | Friction Lock | |

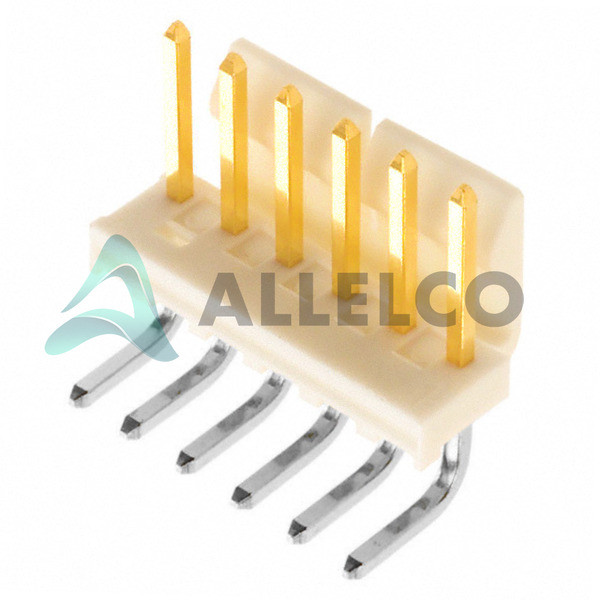

| gedetailleerde beschrijving | Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm) | |
| Huidige score | - | |
| contact type | Male Pin | |
| Contact Vorm | Square | |
| Contact Material | - | |
| Contact Lengte - Post | 0.156" (3.96mm) | |
| Contact Lengte - Paring | 0.450" (11.43mm) | |
| Contact Voltooi Dikte - Post | 100.0µin (2.54µm) | |
| Contact Voltooi Dikte - Paring | 20.0µin (0.51µm) | |
| Contact Afwerken - Post | Tin | |
| Contact Afronden - Paring | Gold | |
| connector Type | Header | |
| toepassingen | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | Loodvrij / RoHS-conform |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Affinity Medical Technologies - a Molex company 26-61-5060.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | 26-61-5070 | 26-61-5100 | 26-61-5080 | 26-61-5090 |
| Fabrikant | Affinity Medical Technologies - a Molex company | Affinity Medical Technologies - a Molex company | Affinity Medical Technologies - a Molex company | Affinity Medical Technologies - a Molex company |
| Contact Afwerken - Post | - | - | - | - |
| gedetailleerde beschrijving | - | - | - | - |
| toepassingen | - | - | - | - |
| Shrouding | - | - | - | - |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
| Vochtgevoeligheidsniveau (MSL) | - | - | - | - |
| Huidige score | - | - | - | - |
| Contact Vorm | - | - | - | - |
| Beëindiging | - | - | - | - |
| Gekoppelde Stacking Heights | - | - | - | - |
| Andere namen | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Isolatiehoogte | - | - | - | - |
| Stijl | - | - | - | - |
| Isolatie Kleur | - | - | - | - |
| Fabrikant Standaard Levertijd | - | - | - | - |
| Aantal posities Loaded | - | - | - | - |
| Packaging | - | - | - | - |
| Aantal posities | - | - | - | - |
| Contact Lengte - Paring | - | - | - | - |
| connector Type | - | - | - | - |
| Pitch - Paring | - | - | - | - |
| bevestegingswijze | - | - | - | - |
| Temperatuur | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Contact Lengte - Post | - | - | - | - |
| Contact Voltooi Dikte - Post | - | - | - | - |
| Totale contactlengte | - | - | - | - |
| Contact Voltooi Dikte - Paring | - | - | - | - |
| Serie | - | - | - | - |
| Rijafstand - Paring | - | - | - | - |
| Differentiële datatransmissie | - | - | - | - |
| Loodvrije status / RoHS-status | - | - | - | - |
| Contact Material | - | - | - | - |
| Kenmerken | - | - | - | Simultaneous Sampling |
| Nominale spanning | - | - | - | - |
| Materiaal Ontvlambaarheidsklasse | - | - | - | - |
| Aantal rijen | - | - | - | - |
| contact type | - | - | - | - |
| Contact Afronden - Paring | - | - | - | - |
Download 26-61-5060 PDF -datasheets en Affinity Medical Technologies - a Molex company -documentatie voor 26-61-5060 - Affinity Medical Technologies - a Molex company.
