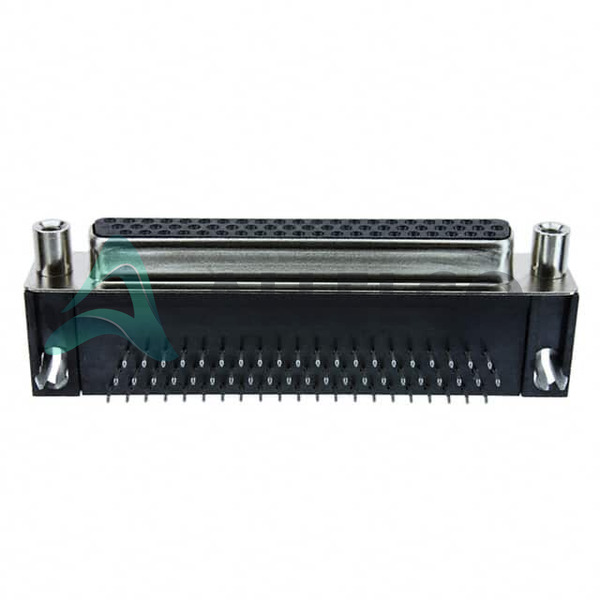

TE Connectivity AMP Connectors - 5748394-6 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 5748394-6
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Wire Gauge | - | |
| Nominale spanning | 125V | |
| Beëindiging | Solder | |
| Shell Size, Connector Layout | 4 (DC, C) High Density | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Serie | AMPLIMITE HD-22 | |
| Pakket | Tray | |
| Temperatuur | -55°C ~ 105°C | |
| Aantal rijen | 3 | |
| Aantal posities | 62 | |
| montage Type | Through Hole, Right Angle | |
| Materiaal Ontvlambaarheidsklasse | - | |
| Ingress Protection | - |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| flens Feature | Mating Side, Female Screwlock (4-40) | |
| Kenmerken | Board Lock | |
| diëlektrische materiaal | Polybutylene Terephthalate (PBT), Glass Filled | |
| Huidige beoordeling (versterkers) | 2A | |
| contact type | Signal | |
| Contact Material | - | |
| Contactformulier | - | |
| Contact Finish Dikte | 30.0µin (0.76µm) | |
| Contact Finish | Gold | |
| connector Type | Receptacle, Female Sockets | |
| connector Style | D-Sub, High Density | |
| Kleur | Black | |
| Base Productnummer | 5748394 | |
| Backset Spacing | - |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | RoHS niet-conform |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 5748394-6.
| Productkenmerk | ![]() |
|||
|---|---|---|---|---|
| Onderdeel nummer | 5748394-5 | 5748481-6 | 5748389-7 | 5748146-6 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Aantal rijen | - | - | - | - |
| Wire Gauge | - | - | - | - |
| Aantal posities | - | - | - | - |
| Beëindiging | - | - | - | - |
| contact type | - | - | - | - |
| Contact Finish Dikte | - | - | - | - |
| Nominale spanning | - | - | - | - |
| Kenmerken | - | - | - | Simultaneous Sampling |
| Kleur | - | - | - | - |
| Temperatuur | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Base Productnummer | - | DAC34H84 | MAX500 | ADS62P42 |
| connector Type | - | - | - | - |
| Huidige beoordeling (versterkers) | - | - | - | - |
| Serie | - | - | - | - |
| Pakket | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Materiaal Ontvlambaarheidsklasse | - | - | - | - |
| Contactformulier | - | - | - | - |
| connector Style | - | - | - | - |
| diëlektrische materiaal | - | - | - | - |
| Shell Material, Finish | - | - | - | - |
| Backset Spacing | - | - | - | - |
| Contact Material | - | - | - | - |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
| Ingress Protection | - | - | - | - |
| Contact Finish | - | - | - | - |
| Shell Size, Connector Layout | - | - | - | - |
| flens Feature | - | - | - | - |
Download 5748394-6 PDF -datasheets en TE Connectivity AMP Connectors -documentatie voor 5748394-6 - TE Connectivity AMP Connectors.
