Datasheets
221789.pdfPCN -ontwerp/specificatie
221789-1 Revise Version 05/Jul/2018.pdfOmgevingsinformatie
221789-1 Statement of Compliance.pdfPCN -assemblage/oorsprong
Mult Devs - Mfg Location Chg 23/APR/2021.pdfWil je een betere prijs?
Toevoegen aan CART en Dien nu RFQ in, we nemen onmiddellijk contact met u op.
| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $4.57 | $4.57 |
| 200+ | $1.769 | $353.80 |
| 500+ | $1.706 | $853.00 |
| 1000+ | $1.676 | $1,676.00 |

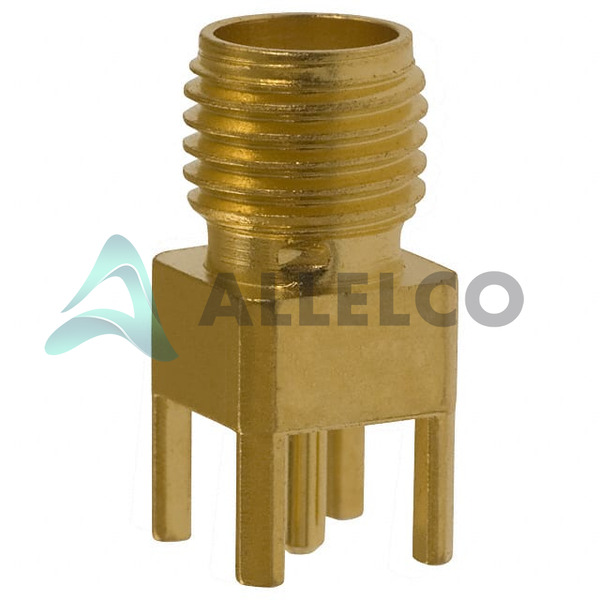

221789-1 Tech -specificaties
TE Connectivity AMP Connectors - 221789-1 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 221789-1
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Nominale spanning | 335 V | |
| Schild Beëindiging | Solder | |
| Serie | - | |
| Pakket | Bulk | |
| Temperatuur | -65°C ~ 165°C | |
| Aantal poorten | 1 | |
| montage Type | Through Hole | |
| montage Feature | - | |
| mating Cycles | 500 | |
| Insertion Loss | 0.3dB | |
| Ingress Protection | - | |
| inclusief | - | |
| Impedantie | 50Ohm |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| behuizing Kleur | Gold | |
| Frequentie - Max | 4 GHz | |
| Kenmerken | - | |
| bevestegingswijze | Threaded | |
| diëlektrische materiaal | Polytetrafluoroethylene (PTFE) | |
| Contact Termination | Solder | |
| connector Type | Jack, Female Socket | |
| connector Style | SMA | |
| Center Contact Plating | Gold | |
| Centrum Contactmateriaal | Beryllium Copper | |
| Kabelgroep | - | |
| Materiaal behuizing | Brass | |
| Body Finish | Gold | |
| Base Productnummer | 221789 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | RoHS-conformiteit |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4010 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 221789-1.
| Productkenmerk | ![]() |
|||
|---|---|---|---|---|
| Onderdeel nummer | 221789-1 | 221789-3 | 221790-1 | 221789-4 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Center Contact Plating | Gold | Gold | Gold | Gold |
| connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Base Productnummer | 221789 | 221789 | 221790 | 221789 |
| Schild Beëindiging | Solder | Solder | Solder | Solder |
| Temperatuur | -65°C ~ 165°C | -65°C ~ 165°C | -65°C ~ 165°C | -65°C ~ 165°C |
| Nominale spanning | 335 V | 335 V | 335 V | 335 V |
| Kenmerken | - | - | - | - |
| Impedantie | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| inclusief | - | - | - | - |
| montage Feature | - | - | - | - |
| Body Finish | Gold | Gold | Gold | Gold |
| mating Cycles | 500 | 500 | 500 | 500 |
| behuizing Kleur | Gold | Gold | Gold | Gold |
| Ingress Protection | - | - | - | - |
| Contact Termination | Solder | Solder | Solder | Solder |
| bevestegingswijze | Threaded | Threaded | Threaded | Threaded |
| Aantal poorten | 1 | 1 | 1 | 1 |
| Materiaal behuizing | Brass | Brass | Stainless Steel | Brass |
| Centrum Contactmateriaal | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Pakket | Bulk | Bulk | Bulk | Tape & Reel (TR) |
| Frequentie - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Kabelgroep | - | - | - | - |
| Serie | - | - | - | - |
| montage Type | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole |
| connector Style | SMA | SMA | SMA | SMA |
| diëlektrische materiaal | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Insertion Loss | 0.3dB | 0.3dB | 0.3dB | 0.3dB |
Download 221789-1 PDF -datasheets en TE Connectivity AMP Connectors -documentatie voor 221789-1 - TE Connectivity AMP Connectors.
