Datasheets
1825094 Drawing.pdfOmgevingsinformatie
1825094-7 Statement of Compliance.pdf1825094-7 Tech -specificaties

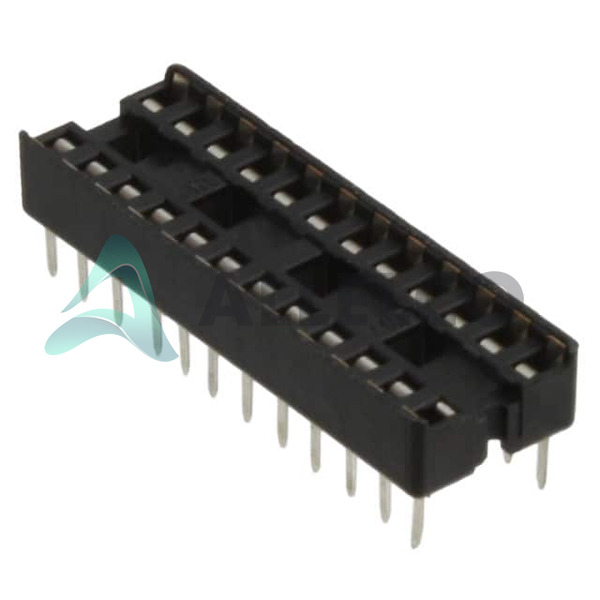

TE Connectivity AMP Connectors - 1825094-7 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 1825094-7
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Type | DIP, 0.3" (7.62mm) Row Spacing | |
| Beëindigingstermijn | 0.128" (3.24mm) | |
| Beëindiging | Solder | |
| Serie | Diplomate DL | |
| Pitch - Post | 0.100" (2.54mm) | |
| Pitch - Paring | 0.100" (2.54mm) | |
| Pakket | Tube | |
| Temperatuur | -55°C ~ 125°C | |
| Aantal posities of Pins (Grid) | 24 (2 x 12) | |
| montage Type | Through Hole |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Materiaal Ontvlambaarheidsklasse | UL94 V-0 | |
| Materiaal behuizing | Thermoplastic, Glass Filled | |
| Kenmerken | Closed Frame | |
| Contact Weerstand | 30mOhm | |
| Contact Materiaal - Post | Phosphor Bronze | |
| Contact Materiaal - Paring | Phosphor Bronze | |
| Contact Voltooi Dikte - Post | 15.0µin (0.38µm) | |
| Contact Voltooi Dikte - Paring | 15.0µin (0.38µm) | |
| Contact Afwerken - Post | Gold | |
| Contact Afronden - Paring | Gold |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | ROHS3 -compatibel |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 1825094-7.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | 1825094-4 | 1825094-6 | 1825094-3 | 1825093-6 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Serie | - | - | - | - |
| Beëindiging | - | - | - | - |
| Contact Afwerken - Post | - | - | - | - |
| Contact Afronden - Paring | - | - | - | - |
| Aantal posities of Pins (Grid) | - | - | - | - |
| Contact Weerstand | - | - | - | - |
| Type | - | - | - | - |
| Materiaal Ontvlambaarheidsklasse | - | - | - | - |
| Contact Materiaal - Post | - | - | - | - |
| Temperatuur | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Pakket | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Pitch - Paring | - | - | - | - |
| Beëindigingstermijn | - | - | - | - |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
| Contact Voltooi Dikte - Paring | - | - | - | - |
| Contact Materiaal - Paring | - | - | - | - |
| Contact Voltooi Dikte - Post | - | - | - | - |
| Pitch - Post | - | - | - | - |
| Materiaal behuizing | - | - | - | - |
| Kenmerken | - | - | - | Simultaneous Sampling |
Download 1825094-7 PDF -datasheets en TE Connectivity AMP Connectors -documentatie voor 1825094-7 - TE Connectivity AMP Connectors.
