| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $0.80 | $0.80 |

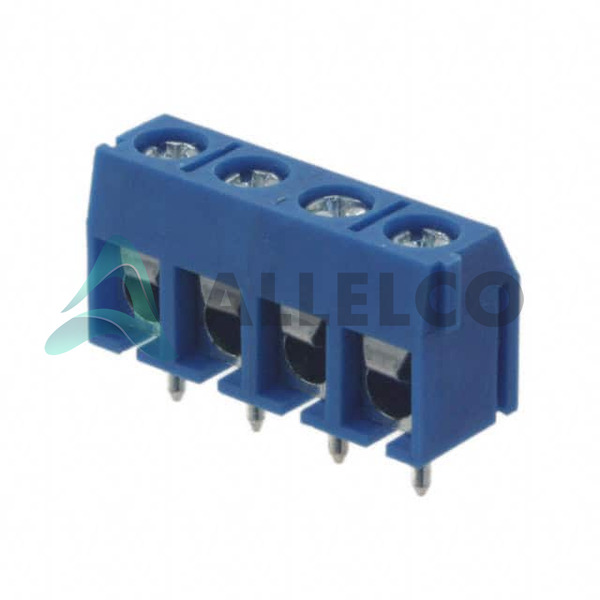

1776244-4 Tech -specificaties
TE Connectivity AMP Connectors - 1776244-4 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 1776244-4
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Wire Beëindiging | Screw - Leaf Spring, Wire Guard | |
| Wire Gauge | 14-22 AWG | |
| Spanning | 300 V | |
| Moment - Schroef | 0.51 Nm (4.5 Lb-In) | |
| Serie | Buchanan | |
| Schroefdraad | M2.6 | |
| Screw Material - Plating | Steel, Galvanized - Chromate Plated | |
| Posities Per Level | 4 | |
| toonhoogte | 0.197' (5.00mm) | |
| Pakket | Bulk |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Temperatuur | -55°C ~ 105°C | |
| Aantal Levels | 1 | |
| montage Type | Through Hole | |
| mating Orientation | Horizontal with Board | |
| Materiaal behuizing | Polyamide (PA66), Nylon 6/6 | |
| Kenmerken | Interlocking (Side) | |
| Actueel | 10 A | |
| Contact Material - Plating | Brass - Tin Plated | |
| Kleur | Blue | |
| Clamp Material - Plating | Steel, Stainless | |
| Base Productnummer | 1776244 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | RoHS-conformiteit |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 1776244-4.
| Productkenmerk | ![]() |
|||
|---|---|---|---|---|
| Onderdeel nummer | 1776244-9 | 1776244-6 | 1776244-3 | 1776244-5 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Kenmerken | - | - | - | Simultaneous Sampling |
| Pakket | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Moment - Schroef | - | - | - | - |
| Schroefdraad | - | - | - | - |
| Screw Material - Plating | - | - | - | - |
| Wire Gauge | - | - | - | - |
| Clamp Material - Plating | - | - | - | - |
| Wire Beëindiging | - | - | - | - |
| Kleur | - | - | - | - |
| Temperatuur | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
| Actueel | - | - | - | - |
| Base Productnummer | - | DAC34H84 | MAX500 | ADS62P42 |
| Contact Material - Plating | - | - | - | - |
| toonhoogte | - | - | - | - |
| mating Orientation | - | - | - | - |
| Materiaal behuizing | - | - | - | - |
| Posities Per Level | - | - | - | - |
| Spanning | - | - | - | - |
| Aantal Levels | - | - | - | - |
| Serie | - | - | - | - |
