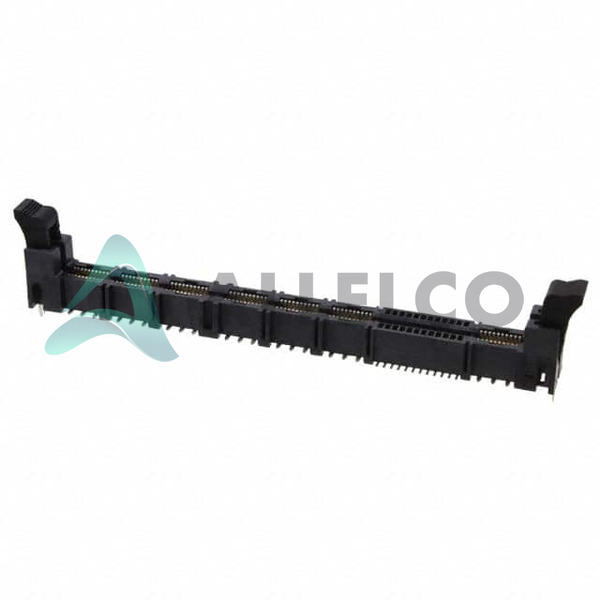

1766735-2 Tech -specificaties
TE Connectivity AMP Connectors - 1766735-2 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 1766735-2
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Beëindiging | Solder | |
| Serie | Mini Crown Edge, Elcon | |
| Uitlezen | Dual | |
| toonhoogte | - | |
| Pakket | Tray | |
| Temperatuur | -55°C ~ 105°C | |
| Aantal rijen | 2 | |
| Aantal posities / Bay / Row | - | |
| Aantal posities | 38 (24 + 14 Power) | |
| montage Type | Surface Mount | |
| Materiaal - Isolatie | Thermoplastic |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Geslacht | Female | |
| flens Feature | - | |
| Kenmerken | Board Lock, Latches | |
| contact type | - | |
| Contact Material | Copper Alloy | |
| Contact Finish Dikte | 30.0µin (0.76µm) | |
| Contact Finish | Gold | |
| Kleur | Black | |
| Kaarttype | Non Specified - Dual Edge | |
| card Dikte | 0.062' (1.57mm) | |
| Base Productnummer | 1766735 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | ROHS3 -compatibel |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 1766735-2.
| Productkenmerk | ![]() |
![]() |
![]() |
|
|---|---|---|---|---|
| Onderdeel nummer | 1766735-2 | 1766735-4 | 1766735-3 | 1766740000 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | Weidmüller |
| Aantal posities | 38 (24 + 14 Power) | 38 (24 + 14 Power) | 38 (24 + 14 Power) | - |
| Contact Finish Dikte | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - |
| Temperatuur | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | - |
| Serie | Mini Crown Edge, Elcon | Mini Crown Edge, Elcon | Mini Crown Edge, Elcon | - |
| card Dikte | 0.062' (1.57mm) | 0.062' (1.57mm) | 0.062' (1.57mm) | - |
| Pakket | Tray | Tray | Bag | Bulk |
| Kleur | Black | Black | Black | Beige |
| Uitlezen | Dual | Dual | Dual | - |
| contact type | - | - | - | - |
| Geslacht | Female | Female | Female | - |
| Materiaal - Isolatie | Thermoplastic | Thermoplastic | Thermoplastic | - |
| Contact Finish | Gold | Gold | Gold | - |
| Kenmerken | Board Lock, Latches | Board Lock, Latches | Board Lock, Latches | 6 Connector Opening, Dust Tight, Waterproof |
| montage Type | Surface Mount | Surface Mount | Surface Mount | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | - |
| toonhoogte | - | - | - | - |
| Aantal posities / Bay / Row | - | - | - | - |
| Base Productnummer | 1766735 | 1766735 | 1766735 | - |
| Beëindiging | Solder | Solder | Solder | - |
| flens Feature | - | - | - | - |
| Kaarttype | Non Specified - Dual Edge | Non Specified - Dual Edge | Non Specified - Dual Edge | - |
| Aantal rijen | 2 | 2 | 2 | - |
