Datasheets
1747022 Drawing.pdfPCN -verpakking
1747022 04/Nov/2014.pdfPCN -ontwerp/specificatie
1747022 Document Clarification 11/Sep/2017.pdf 1747022 Drawing 22/Oct/2014.pdf1747022-9 Tech -specificaties

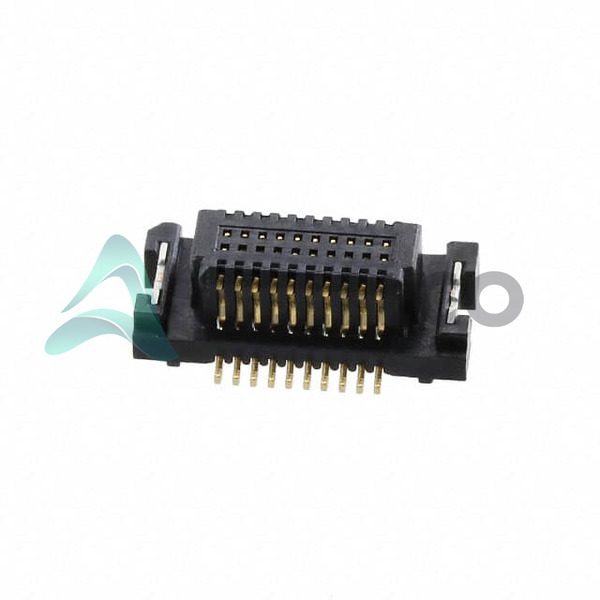

TE Connectivity AMP Connectors - 1747022-9 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 1747022-9
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Serie | Fine Mate | |
| toonhoogte | 0.020" (0.50mm) | |
| Pakket | Tape & Reel (TR) | |
| Aantal rijen | 2 | |
| Aantal posities | 20 | |
| montage Type | Surface Mount |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Gekoppelde Stacking Heights | 4mm, 4.5mm, 5.5mm, 6mm | |
| Hoogte boven Board | 0.126" (3.20mm) | |
| Kenmerken | Solder Retention | |
| Contact Finish Dikte | - | |
| Contact Finish | Gold | |
| connector Type | Receptacle, Center Strip Contacts | |
| Base Productnummer | 1747022 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | ROHS3 -compatibel |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 1747022-9.
| Productkenmerk | ![]() |
|||
|---|---|---|---|---|
| Onderdeel nummer | 1747022-3 | 1747038-9 | 1747028-1 | 1747025-6 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Aantal rijen | - | - | - | - |
| connector Type | - | - | - | - |
| Aantal posities | - | - | - | - |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
| Kenmerken | - | - | - | Simultaneous Sampling |
| Hoogte boven Board | - | - | - | - |
| Serie | - | - | - | - |
| toonhoogte | - | - | - | - |
| Gekoppelde Stacking Heights | - | - | - | - |
| Contact Finish | - | - | - | - |
| Base Productnummer | - | DAC34H84 | MAX500 | ADS62P42 |
| Pakket | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Contact Finish Dikte | - | - | - | - |
Download 1747022-9 PDF -datasheets en TE Connectivity AMP Connectors -documentatie voor 1747022-9 - TE Connectivity AMP Connectors.
