| Aantal stuks | Eenheid prijs | Ext.Prijs |
|---|---|---|
| 1+ | $1.337 | $1.34 |

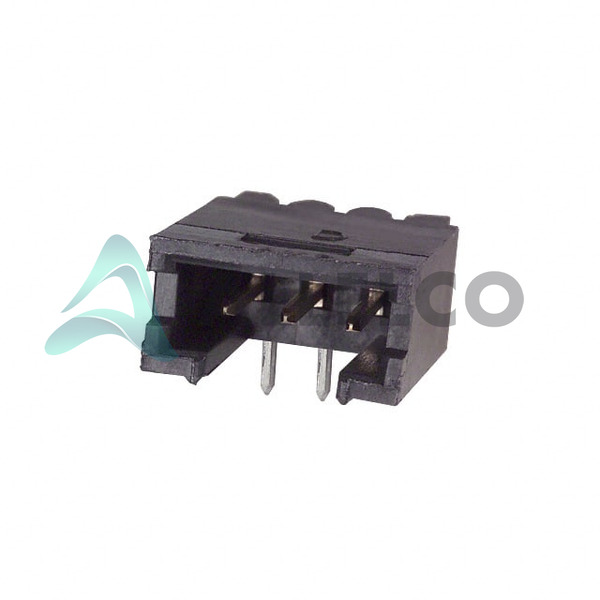

103361-1 Tech -specificaties
TE Connectivity AMP Connectors - 103361-1 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 103361-1
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Nominale spanning | - | |
| Beëindiging | Solder | |
| Stijl | Board to Board or Cable | |
| Shrouding | Shrouded - 4 Wall | |
| Serie | AMPMODU Mod II | |
| Rijafstand - Paring | - | |
| Pitch - Paring | 0.100' (2.54mm) | |
| Pakket | Tube | |
| Totale contactlengte | - | |
| Temperatuur | -65°C ~ 105°C | |
| Aantal rijen | 1 | |
| Aantal posities Loaded | All | |
| Aantal posities | 3 | |
| montage Type | Through Hole, Right Angle | |
| Materiaal Ontvlambaarheidsklasse | UL94 V-0 | |
| Gekoppelde Stacking Heights | - | |
| Differentiële datatransmissie | Thermoplastic |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Isolatiehoogte | 0.214' (5.44mm) | |
| Isolatie Kleur | Black | |
| Ingress Protection | - | |
| Kenmerken | - | |
| bevestegingswijze | Push-Pull | |
| Huidige beoordeling (versterkers) | 3A | |
| contact type | Male Pin | |
| Contact Vorm | Square | |
| Contact Material | Phosphor Bronze | |
| Contact Lengte - Post | 0.110' (2.79mm) | |
| Contact Lengte - Paring | 0.240' (6.10mm) | |
| Contact Voltooi Dikte - Post | 100.0µin (2.54µm) | |
| Contact Voltooi Dikte - Paring | 30.0µin (0.76µm) | |
| Contact Afwerken - Post | Tin-Lead | |
| Contact Afronden - Paring | Gold | |
| connector Type | Header | |
| Base Productnummer | 103361 | |
| toepassingen | - |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | Niet toepasbaar |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 103361-1.
| Productkenmerk | ![]() |
|||
|---|---|---|---|---|
| Onderdeel nummer | 103361-7 | 103361-5 | 103361-4 | 103361-2 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Contact Voltooi Dikte - Paring | - | - | - | - |
| Aantal posities | - | - | - | - |
| Shrouding | - | - | - | - |
| Differentiële datatransmissie | - | - | - | - |
| Contact Material | - | - | - | - |
| Pakket | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Huidige beoordeling (versterkers) | - | - | - | - |
| Aantal posities Loaded | - | - | - | - |
| Serie | - | - | - | - |
| Base Productnummer | - | DAC34H84 | MAX500 | ADS62P42 |
| Contact Afronden - Paring | - | - | - | - |
| toepassingen | - | - | - | - |
| Contact Voltooi Dikte - Post | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Pitch - Paring | - | - | - | - |
| Contact Lengte - Paring | - | - | - | - |
| Stijl | - | - | - | - |
| Rijafstand - Paring | - | - | - | - |
| Isolatiehoogte | - | - | - | - |
| connector Type | - | - | - | - |
| Totale contactlengte | - | - | - | - |
| Kenmerken | - | - | - | Simultaneous Sampling |
| Contact Afwerken - Post | - | - | - | - |
| Gekoppelde Stacking Heights | - | - | - | - |
| Contact Lengte - Post | - | - | - | - |
| bevestegingswijze | - | - | - | - |
| Aantal rijen | - | - | - | - |
| Temperatuur | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Materiaal Ontvlambaarheidsklasse | - | - | - | - |
| contact type | - | - | - | - |
| Nominale spanning | - | - | - | - |
| Beëindiging | - | - | - | - |
| Isolatie Kleur | - | - | - | - |
| Contact Vorm | - | - | - | - |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
Download 103361-1 PDF -datasheets en TE Connectivity AMP Connectors -documentatie voor 103361-1 - TE Connectivity AMP Connectors.
