Datasheets
102316 Drawing.pdfPCN -assemblage/oorsprong
Mfg location change 22/DEC/2021.pdf102316-6 Tech -specificaties

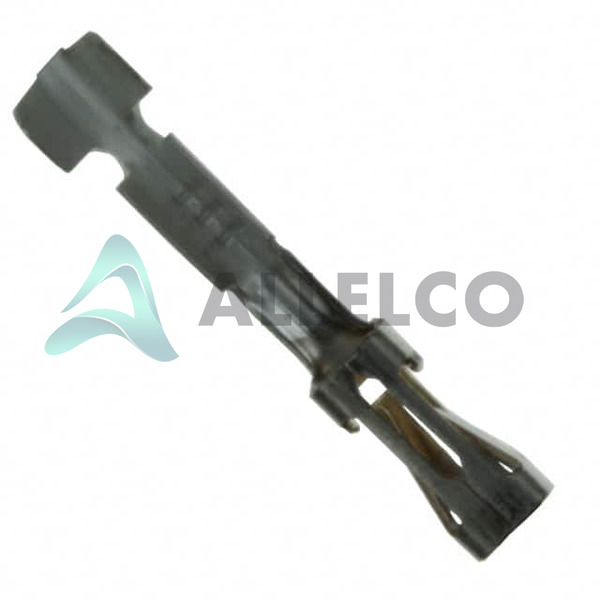

TE Connectivity AMP Connectors - 102316-6 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 102316-6
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Wire Gauge | 27-32 AWG | |
| Type | - | |
| Serie | AMPMODU Mod IV | |
| Pin of Socket | Socket |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Pakket | Tape & Reel (TR) | |
| Contact Termination | Crimp | |
| Contact Finish Dikte | 15.0µin (0.38µm) | |
| Contact Finish | Gold | |
| Base Productnummer | 102316 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | ROHS3 -compatibel |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 102316-6.
| Productkenmerk | ![]() |
![]() |
||
|---|---|---|---|---|
| Onderdeel nummer | 102316-6 | 102316-8 | 102316-5 | 102316-2 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Base Productnummer | 102316 | 102316 | 102316 | 102316 |
| Wire Gauge | 27-32 AWG | 27-32 AWG | 27-32 AWG | 27-32 AWG |
| Type | - | - | - | - |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Contact Finish Dikte | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 50.0µin (1.27µm) | 30.0µin (0.76µm) |
| Pakket | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
| Serie | AMPMODU Mod IV | AMPMODU Mod IV | AMPMODU Mod IV | AMPMODU Mod IV |
| Contact Finish | Gold | Gold | Tin | Gold |
| Pin of Socket | Socket | Socket | Socket | Socket |
Download 102316-6 PDF -datasheets en TE Connectivity AMP Connectors -documentatie voor 102316-6 - TE Connectivity AMP Connectors.
