Datasheets
499922.pdfOmgevingsinformatie
1-499922-1 Statement of Compliance.pdf1-499922-1 Tech -specificaties

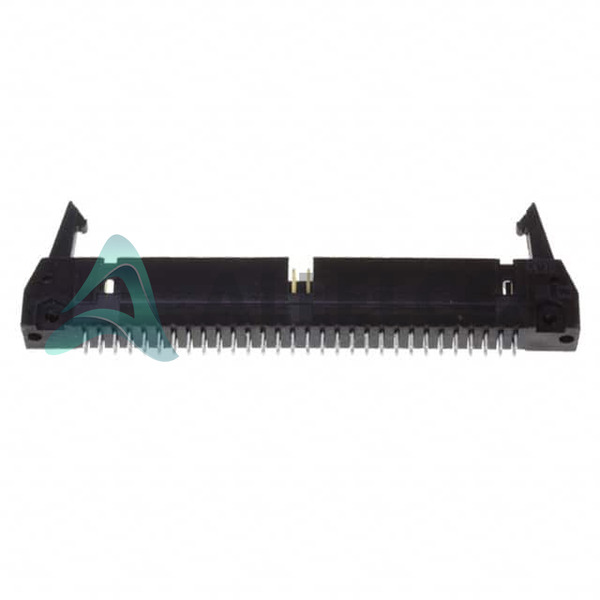

TE Connectivity AMP Connectors - 1-499922-1 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als TE Connectivity AMP Connectors - 1-499922-1
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | TE Connectivity | |
| Nominale spanning | 250VAC | |
| Beëindiging | Solder | |
| Stijl | Board to Cable/Wire | |
| Shrouding | Shrouded - 4 Wall | |
| Serie | AMP-Latch | |
| Rijafstand - Paring | 0.100" (2.54mm) | |
| Pitch - Paring | 0.100" (2.54mm) | |
| Pakket | Tray | |
| Totale contactlengte | 0.639" (16.23mm) | |
| Temperatuur | -65°C ~ 105°C | |
| Aantal rijen | 2 | |
| Aantal posities Loaded | All | |
| Aantal posities | 60 | |
| montage Type | Through Hole | |
| Materiaal Ontvlambaarheidsklasse | UL94 V-0 | |
| Gekoppelde Stacking Heights | - | |
| Differentiële datatransmissie | - |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Isolatiehoogte | 0.549" (13.94mm) | |
| Isolatie Kleur | Black | |
| Ingress Protection | - | |
| Kenmerken | Keying Slot, Mounting Flange | |
| bevestegingswijze | Latch Lock/Eject Hooks, Long | |
| Huidige beoordeling (versterkers) | 1A | |
| contact type | Male Pin | |
| Contact Vorm | Square | |
| Contact Material | - | |
| Contact Lengte - Post | 0.110" (2.79mm) | |
| Contact Lengte - Paring | 0.240" (6.10mm) | |
| Contact Voltooi Dikte - Post | 100.0µin (2.54µm) | |
| Contact Voltooi Dikte - Paring | 15.0µin (0.38µm) | |
| Contact Afwerken - Post | Tin-Lead | |
| Contact Afronden - Paring | Gold or Gold-Palladium | |
| connector Type | Header | |
| Base Productnummer | 499922 | |
| toepassingen | - |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | RoHS niet-conform |
| Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
| Bereikstatus | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als TE Connectivity AMP Connectors 1-499922-1.
| Productkenmerk | ||||
|---|---|---|---|---|
| Onderdeel nummer | 1-499923-1 | 1-499922-2 | 1-499922-0 | 1-499923-0 |
| Fabrikant | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Aantal posities Loaded | - | - | - | - |
| Differentiële datatransmissie | - | - | - | - |
| Nominale spanning | - | - | - | - |
| Contact Vorm | - | - | - | - |
| contact type | - | - | - | - |
| Pitch - Paring | - | - | - | - |
| Contact Voltooi Dikte - Post | - | - | - | - |
| Beëindiging | - | - | - | - |
| Totale contactlengte | - | - | - | - |
| Materiaal Ontvlambaarheidsklasse | - | - | - | - |
| Shrouding | - | - | - | - |
| Gekoppelde Stacking Heights | - | - | - | - |
| Isolatie Kleur | - | - | - | - |
| Aantal posities | - | - | - | - |
| Rijafstand - Paring | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Contact Afronden - Paring | - | - | - | - |
| montage Type | - | Surface Mount | Through Hole | Surface Mount |
| Temperatuur | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Contact Lengte - Paring | - | - | - | - |
| Pakket | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| connector Type | - | - | - | - |
| Contact Afwerken - Post | - | - | - | - |
| Aantal rijen | - | - | - | - |
| Contact Lengte - Post | - | - | - | - |
| Stijl | - | - | - | - |
| toepassingen | - | - | - | - |
| Contact Material | - | - | - | - |
| Isolatiehoogte | - | - | - | - |
| Base Productnummer | - | DAC34H84 | MAX500 | ADS62P42 |
| Huidige beoordeling (versterkers) | - | - | - | - |
| Kenmerken | - | - | - | Simultaneous Sampling |
| bevestegingswijze | - | - | - | - |
| Serie | - | - | - | - |
| Contact Voltooi Dikte - Paring | - | - | - | - |
